BRAKE DISC ROTOR - SUBARU FRONT Pair

DBA Street Series Brake Rotor Front SUBARU - standard En-Shield Finish 294mm DIA

Part #: DBA650E

Manufacturer: DBA Australia

$135.34

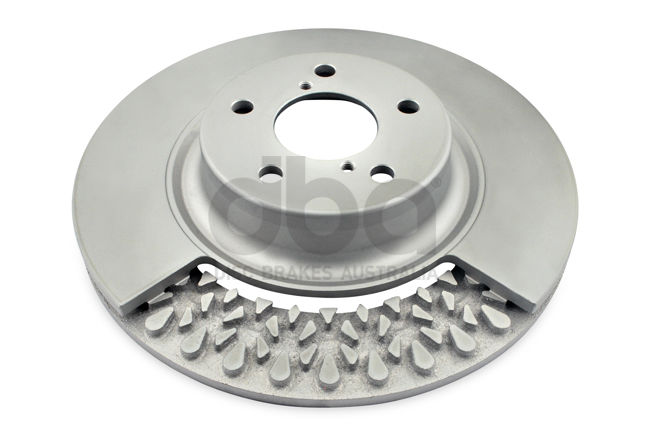

DBA BRAKE ROTOR

DBA’s Street Series direct replacement rotors are ideal for drivers seeking OE level braking or entry level performance braking. As one of the most safety critical components in any vehicle, DBA manufactures above OEM standards as our minimum requirement.

DBA’s Street Series improves on traditional OE rotors with DBA’s patented Kangaroo Paw ventilation* for improved heat reduction and EnShield Protection* for rust free rotors, available with either an OE style CBN machine finish, X Gold cross drilled (X)* or DBA’s patented T2 bi-directional (S) slot design.

DBA’s Street Series rotors feature:

Kangaroo Paw ventilation
Direct replacement suitability
Moisture proof corrosion protection packaging

DBA recommends the street series for daily drivers, light commercial and street SUV applications.

Dimensions

Attribute	Value
Centering Diameter [mm]	58
Number of Holes	5
Outer diameter [mm]	294
Brake Disc Type	Vented
Pitch Circle Ø [mm]	100
Disc Vent	V
Height [mm]	57
Weight [kg]	7
Minimum Thickness [mm]	22
Brake Disc Thickness [mm]	24
No. of holes 1	5

Other Vehicle Fitment

Make	Model	Year	Variant	Engine Code
TOYOTA	86	03/12-on	147KW-1998CC-4CYL-RWD-Petrol Engine	FA20D,4U-GSE
TOYOTA	86	08/16-on	152KW-1998CC-4CYL-RWD-Petrol Engine	FA20D,4U-GSE
SUBARU	BRZ	06/12-09/16	147KW-1998CC-4CYL-RWD-Petrol Engine	FA20D
SUBARU	FORESTER	01/09-04/13	126KW-2457CC-4CYL-AWD-Petrol Engine	EJ25
SUBARU	FORESTER	12/03-06/05	155KW-2457CC-4CYL-AWD-Petrol Engine	EJ25
SUBARU	FORESTER	06/05-05/08	169KW-2457CC-4CYL-AWD-Petrol Engine	EJ255
SUBARU	FORESTER	09/08-04/13	108KW-1998CC-4CYL-AWD-Diesel	EE20Z
SUBARU	FORESTER	06/08-04/13	169KW-2457CC-4CYL-AWD-Petrol Engine	EJ255
SUBARU	FORESTER	06/05-12/08	121KW-2457CC-4CYL-AWD-Petrol Engine	EJ25D
SUBARU	FORESTER	02/11-04/13	193KW-2457CC-4CYL-AWD-Petrol Engine	EJ255
SUBARU	FORESTER	03/13-07/18	110KW-1995CC-4CYL-AWD-Petrol Engine	FB20
SUBARU	FORESTER	03/13-07/18	108KW-1998CC-4CYL-AWD-Diesel	EE20Z
SUBARU	FORESTER	03/13-07/18	177KW-1998CC-4CYL-AWD-Petrol Engine	FA20
SUBARU	FORESTER	11/12-07/18	126KW-2498CC-4CYL-AWD-Petrol Engine	FB25
SUBARU	IMPREZA	10/05-12/07	169KW-2457CC-4CYL-AWD-Petrol Engine	EJ255
SUBARU	IMPREZA	09/05-12/08	169KW-2457CC-4CYL-AWD-Petrol Engine	EJ255
SUBARU	IMPREZA	02/99-10/00	206KW-1994CC-4CYL-AWD-Petrol Engine	EJ205P
SUBARU	IMPREZA	09/98-09/00	206KW-1994CC-4CYL-AWD-Petrol Engine	EJ205P
SUBARU	IMPREZA	10/05-03/07	206KW-1994CC-4CYL-AWD-Petrol Engine	EJ207
SUBARU	IMPREZA	09/98-10/00	160KW-1994CC-4CYL-AWD-Petrol Engine	EJ205
SUBARU	IMPREZA	09/98-10/00	160KW-1994CC-4CYL-AWD-Petrol Engine	EJ205
SUBARU	IMPREZA	10/00-11/02	92KW-1994CC-4CYL-AWD-Petrol Engine	EJ201
SUBARU	IMPREZA	10/00-11/02	160KW-1994CC-4CYL-AWD-Petrol Engine	EJ205
SUBARU	IMPREZA	10/00-11/02	160KW-1994CC-4CYL-AWD-Petrol Engine	EJ205
SUBARU	IMPREZA	12/01-11/02	150KW-1994CC-4CYL-AWD-Petrol Engine	EJ205
SUBARU	IMPREZA	12/02-09/05	168KW-1994CC-4CYL-AWD-Petrol Engine	EJ205
SUBARU	IMPREZA	01/05-12/06	169KW-1994CC-4CYL-AWD-Petrol Engine	EJ205
SUBARU	LIBERTY	06/05-07/07	121KW-1994CC-4CYL-AWD-Petrol Engine	EJ204
SUBARU	LIBERTY	09/03-07/07	121KW-2457CC-4CYL-AWD-Petrol Engine	EJ25
SUBARU	LIBERTY	09/09-12/14	123KW-2457CC-4CYL-AWD-Petrol Engine	EJ253
SUBARU	LIBERTY	09/03-11/06	180KW-1994CC-4CYL-AWD-Petrol Engine	EJ20 (Turbo)
SUBARU	LIBERTY	09/03-11/06	180KW-1994CC-4CYL-AWD-Petrol Engine	EJ20 (Turbo)
SUBARU	LIBERTY	07/12-12/14	127KW-2498CC-4CYL-AWD-Petrol Engine	FB25,FB25A,FB25B
SUBARU	LIBERTY	02/02-08/03	176KW-1994CC-4CYL-AWD-Petrol Engine
SUBARU	OUTBACK	01/00-08/03	154KW-3000CC-6CYL-AWD-Petrol Engine	EZ30
SUBARU	OUTBACK	01/00-08/03	115KW-2457CC-4CYL-AWD-Petrol Engine	EJ25
SUBARU	OUTBACK	11/03-06/07	121KW-2457CC-4CYL-AWD-Petrol Engine	EJ25D
SUBARU	OUTBACK	11/03-09/09	180KW-3000CC-6CYL-AWD-Petrol Engine	EZ30
SUBARU	OUTBACK	09/09-01/15	110KW-1998CC-4CYL-AWD-Diesel	EE20Z
SUBARU	OUTBACK	09/09-01/15	123KW-2457CC-4CYL-AWD-Petrol Engine	EJ253
SUBARU	OUTBACK	10/14-on	129KW-2498CC-4CYL-AWD-Petrol Engine	FB25
SUBARU	XV	12/11-05/17	110KW-1995CC-4CYL-AWD-Petrol Engine	FB20B
SUBARU	BRZ	08/16-on	152KW-1998CC-4CYL-RWD-Petrol Engine
SUBARU	FORESTER	02/02-12/08	130KW-1994CC-4CYL-AWD-Petrol Engine	EJ205
SUBARU	FORESTER	03/11-09/13	126KW-2498CC-4CYL-AWD-Petrol Engine	FB25
SUBARU	FORESTER	06/02-05/05	112KW-2457CC-4CYL-AWD-Petrol Engine	EJ251
SUBARU	IMPREZA	10/07-09/11	169KW-2457CC-4CYL-AWD-Petrol Engine	EJ255
SUBARU	IMPREZA	01/08-08/13	221KW-2457CC-4CYL-AWD-Petrol Engine	EJ257
SUBARU	IMPREZA	07/10-08/13	195KW-2457CC-4CYL-AWD-Petrol Engine	EJ255
SUBARU	IMPREZA	01/09-11/16	195KW-2457CC-4CYL-AWD-Petrol Engine	EJ255
SUBARU	IMPREZA	07/11-11/16	110KW-1995CC-4CYL-AWD-Petrol Engine	FB20B
SUBARU	LIBERTY	10/98-08/03	115KW-2457CC-4CYL-AWD-Petrol Engine	EJ25
SUBARU	LIBERTY	08/04-07/07	180KW-3000CC-6CYL-AWD-Petrol Engine	EZ30
SUBARU	LIBERTY	06/05-04/09	121KW-1994CC-4CYL-AWD-Petrol Engine	EJ204
SUBARU	LIBERTY	01/08-12/09	127KW-2457CC-4CYL-AWD-Petrol Engine	EJ25
SUBARU	LIBERTY	09/07-08/09	127KW-2457CC-4CYL-AWD-Petrol Engine	EJ25
SUBARU	LIBERTY	07/10-12/14	195KW-2457CC-4CYL-AWD-Petrol Engine	EJ255
SUBARU	LIBERTY	07/12-12/14	127KW-2498CC-4CYL-AWD-Petrol Engine	FB25
SUBARU	LIBERTY	08/04-07/06	190KW-1994CC-4CYL-AWD-Petrol Engine
SUBARU	LIBERTY	08/04-08/06	190KW-1994CC-4CYL-AWD-Petrol Engine
SUBARU	LIBERTY	02/02-06/03	190KW-1994CC-4CYL-AWD-Petrol Engine	EJ206
SUBARU	OUTBACK	01/12-01/15	127KW-2457CC-4CYL-AWD-Petrol Engine	EJ253
SUBARU	IMPREZA WRX	01/08-12/10	195KW-2457CC-4CYL-AWD-Petrol Engine	EJ255
SUBARU	LEGACY	01/98-12/03	KW-1994CC-4CYL-AWD-Petrol Engine	EJ20
SUBARU	LEGACY	05/03-12/09	KW-1994CC-4CYL-AWD-Petrol Engine	EJ20
SUBARU	LEGACY	01/03-12/08	KW-1994CC-4CYL-AWD-Petrol Engine	EJ20
